Sashed makes stunning bespoke timber pivot doors that are available in an array of timber finishes, in almost every possible dimension.
Working in collaboration with the world-renowned pivot hinges from FritsJurgens, we create made to measure structures with a dramatic profile and an astonishing freedom of movement. The flexibility offered by FritsJurgens’ hinge systems allows us to design and manufacture unique pivot door designs for any space; to pioneer truly individual products that are redefining what’s possible in our homes today.
Pivot doors connect the inside to the outside in a spectacular way. By moving the hinges from the side of the frame inwards towards the centre of the frame, we create an expansive, uninterrupted view of your external landscape.
Pivot hinges can support much more weight compared to door-sets with traditional butt hinges. In fact, they are suitable for loads of up to 500kg. Their technology allows for the creation of exceptionally large doors that give a sense of space and grandeur to any property.
FritsJurgens pivot hinge systems are incorporated into the door and can carry weights from 20kg to 500 kg; this means we can make oversized doors which would not normally work with traditional butt hinges. So, whether you choose a contemporary design or a traditional design, a FritsJurgens hinge will always ensure a fluent motion.
We believe detail is paramount and your windows and doors should reflect your style and complement your home’s character. That’s why we offer a wide range of customisable design options to suit your taste. The choice is yours.
Select the timber with the right look, feel, and level of durability. Choose from Pine, Larch, Meranti, Oak and Accoya™.
Choose from our wide range of glazing options, including high preforming double glazing, vacuum-insulated glazing, and specialised conservation and heritage glazing for historic buildings.
Choose from our range of traditional fasteners and handles, or let us source custom architectural ironmongery on your behalf.
Factory-sprayed in four flawless coats, our windows and doors are available in any shade from Farrow & Ball™, Little Greene™, or RAL, as well as a selection of stains and lacquers.
Add a touch of artistry with beautiful, handmade stained glass designs that reflect your home’s architectural features.
Your security requirements will vary. We offer traditional locking and innovative multi-point solutions to cover all bases.
Complete the look with custom-designed architrave and surrounds for added detail and sophistication.
Although very much on-trend pivot hinged doors are less common than doors which use traditional butt hinges, therefore, if you’re considering purchasing a pivot door, it’s essential to make sure you understand how this type of door system works so you can decide if it’s suitable for your property.
Pivot door systems can support much more weight compared to doors with traditional butt hinges; this allows the creation of huge door sets using a single-panel door, giving you a grand entrance aesthetic. For example, we can support up to 500kg in a single door, and depending on the type of timber and glazing used, we can create door sizes up to 3340mm wide in a single door panel. Our flexible pivot door profile also allows for sidelights and top lights within the construction of a single frame. Pivot hinge systems are perfect for more oversized doors, ideally 1400mm in width, but we can also make pivot doors as narrow as 850mm.
Pivot doors have small areas at the top and bottom of the door frame that the drop-down seals don’t cover. This means that the door could be a little drafty in windy weather, and you will also experience some air leakage. We use cleverly placed gaskets, brushes, and seals, making the Sashed pivot door system one of the best weather-sealed pivot doors commercially available in the UK.
As per the point above, we have worked hard at engineering the maximum amount of gaskets and seals we can into the design of the profile, but due to the nature of a pivot door, which opens both inside and outside at the same time, there are some limitations which restrict the use of rebating within the frame and door. With this in mind, we recommend that pivot doors be set back from exposed areas, but we welcome conversations about your project if your use case is for a more exposed application.
Yes, depending on the pivot point’s position, some walkthrough space will be lost. The pivot hinge needs to be placed at least 100mm from the edge of the door. This means that on a 1400 mm wide door set, you would have a walkthrough opening of 1240mm. For maximum effect and to achieve the best aesthetic of a 1400mm wide door, we recommend placing the pivot point 240mm in from the edge of the door, giving you a 1000mm walkthrough area.
Explore our case studies of stunning timber window and door installations. See how we’ve transformed homes across London and the Home Counties of England with bespoke designs honouring tradition while embracing innovation.

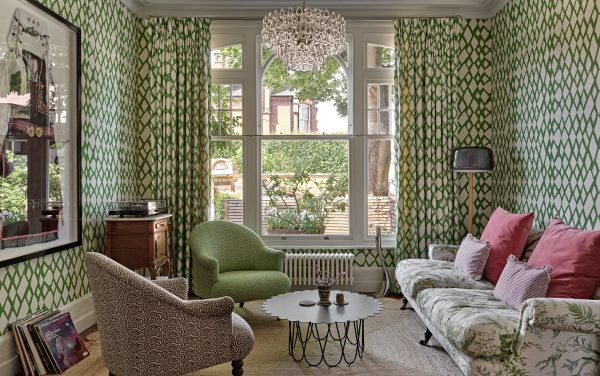

Sash windows and bespoke arched joinery for a Barnes Conservation Area home Located on Glebe Road in SW13, this.

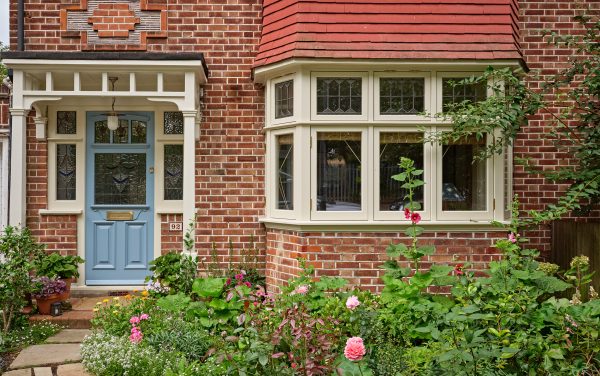

Perched on Longstone Avenue with views over Roundwood Park, Sashed was commissioned to craft a bespoke timber front door.

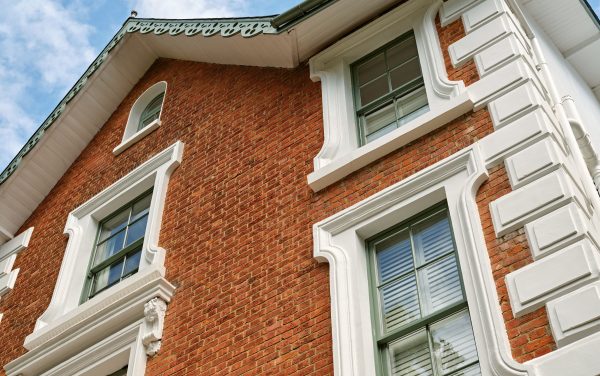

Beautiful bespoke windows and stained glass artistry for a family home in Surrey Set across four storeys, this detached.
Starting the process with Sashed couldn’t be easier. Click below to get a quote from our team or book an onsite survey so we can assess your requirements in greater detail and bring your vision to life.
We provide a truly turnkey design, manufacturing and installation service for designers and architects who are searching for best-in-class solutions for their own client base. From design to installation, Sashed is your trusted partner for exceptional results.
Every design led timber window and door is built to the highest standards.
You can contact us when you’re ready, without feeling pressured.
Get the right advice at every step. Trust our experienced team to help you make confident, informed decisions.
From initial consultation to final fitting, we ensure everything is handled with care.
Our in-house, FENSA-approved joiners are some of the most highly skilled timber window and door specialists in the UK.
From resolving snagging issues to providing maintenance advice, we’re here to support you.
